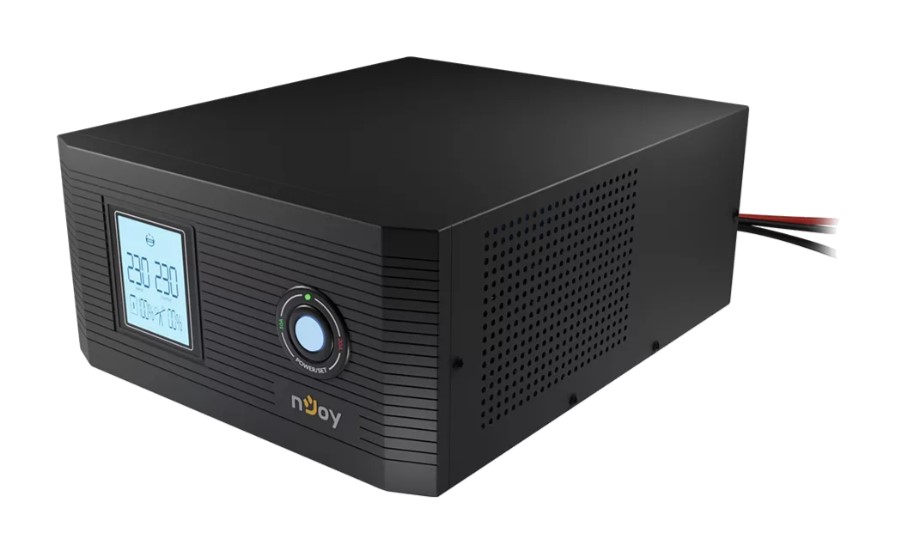

nJoy Aira 600 — 600VA / 500W

nJoy Aira 600 — 600VA / 500W Pure Sine Wave Line-Interactive UPS

General Specifications

Device type: Uninterruptible Power Supply (UPS)

Brand: nJoy

Model: Aira 600

Part Number: UPCSTLP860TAICP01B

UPS technology: Line-Interactive (VI)

Form factor: Tower

Phase: Single-Phase

Rated capacity: 600 VA

Maximum output power: 500 W

Output waveform: Pure Sine Wave

Input Specifications

Nominal input voltage: 230 V AC

Input voltage range: 145–275 V AC

Input frequency: 50 Hz

Automatic Voltage Regulation (AVR): Supported

Output Specifications

Nominal output voltage: 230 V AC

Output voltage range: 213–248 V AC

Voltage regulation in battery mode: ±8%

Output frequency: 50 Hz

Output waveform in battery mode: Pure Sine Wave

Transfer time: Less than 10 ms

Inrush power: 1500 W

Number of output sockets: 2

Socket type: Schuko

Battery Backup Outlets: 2

Battery

Battery configuration: External battery only

Battery included: No

Internal battery: None

Battery voltage: 12 V DC

Compatible battery types: Car Battery / Deep-Cycle Battery

Recommended battery capacity: 40–200 Ah

Battery charging current: Selectable 10 A / 20 A

External battery connection: Battery Cables

Car battery adapter: Included

Battery Runtime

Backup time: Depends on external battery capacity and connected load

Extended backup operation: Supported

Protection and Features

Automatic Voltage Regulation (AVR)

Pure Sine Wave Output

Overload Protection

Short-Circuit Protection

Battery Overcharge Protection

Battery Over-Discharge Protection

Cold Start Function

Off-Mode Battery Charging

Automatic Restart After Power Restoration

Selectable Battery Charging Current: 10 A / 20 A

Suitable for Central Heating Systems and Circulation Pumps

Indicators and Controls

Display type: LCD

AC Mode Indicator

Battery Mode Indicator

Load Level Indicator

Battery Level Indicator

Input Voltage Display

Output Voltage Display

Frequency Display

Charging Current Status Indicators

Power On/Off Button

Communication interface: None

Physical Specifications

Color: Black

Installation: Tower / Desktop

Noise level: Less than 40 dB

Dimensions: 255 × 290 × 120 mm

Weight: 7.6 kg

Operating Conditions

Operating temperature: 0 to +40 °C

Operating humidity: 20–90%, non-condensing

Certifications: CE / RoHS

Package Contents

nJoy Aira 600 UPS

Attached Power Cord

Attached Battery Cables

Car Battery Adapter

User Manual

Warranty Card

External battery is not included.
