nJoy Keen 600 — 600VA / 360W

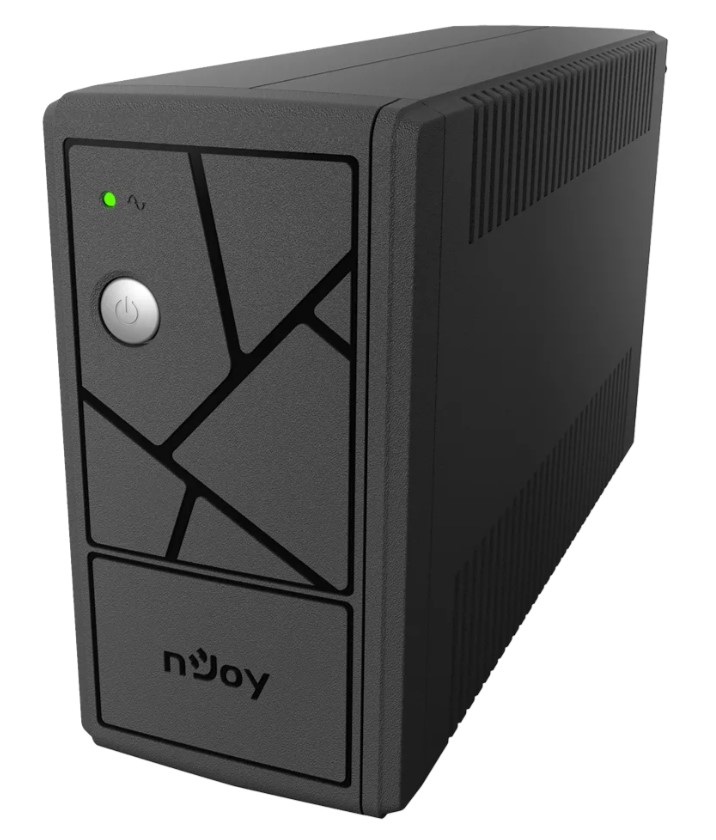

nJoy Keen 600 — 600VA / 360W Line-Interactive UPS

General Specifications

Device type: Uninterruptible Power Supply (UPS)

Brand: nJoy

Model: Keen 600

Part Number: UPLI-LI060KE-CG01B

UPS technology: Line-Interactive (VI)

Form factor: Tower

Phase: Single-Phase

Rated capacity: 600 VA

Maximum output power: 360 W

Output power factor: 0.6

Input Specifications

Nominal input voltage: 230 V AC

Input voltage range: 162–290 V AC (±1%)

Input frequency: 50 / 60 Hz (Auto Sensing)

Automatic Voltage Regulation (AVR): Supported

Output Specifications

Nominal output voltage: 230 V AC

Output voltage range: 207–253 V AC

Output voltage accuracy: ±10%

Output frequency in battery mode: 50 / 60 Hz ±1%

Output waveform: Simulated Sine Wave

Transfer time: Typical 4 ms

Number of outlets: 2

Outlet type: Schuko

Battery Backup Outlets: 2

Surge Protection: Supported

Battery

Battery type: Sealed Lead-Acid (SLA)

Battery configuration: 1 × 12 V / 7 Ah

Battery model: GP07122L

Battery location: Internal

Typical recharge time: 6 hours to 90% capacity

Automatic battery charging: Supported

Off-Mode Charging: Supported

Cold Start: Supported

Battery Runtime

25% load (90 W): Up to 19 minutes

50% load (180 W): Up to 5 minutes

75% load (270 W): Approximately 1 minute

100% load (360 W): Less than 1 minute

Protection and Features

Automatic Voltage Regulation (AVR)

Auto-Restart after power restoration

Overload Protection

Overvoltage Protection

Short-Circuit Protection

Battery Overcharge Protection

Battery Over-Discharge Protection

Circuit Breaker

Indicators and Controls

LED status indicator: Supported

Audible alarm: Supported

Power On/Off button: Yes

LCD display: No

USB communication interface: No

RJ11/RJ45 surge protection ports: No

Physical Specifications

Color: Black

Installation: Tower / Desktop

Cooling: Fanless

Noise level: Less than 40 dB

Power cord length: 1.2 m

Dimensions: 276 × 87 × 165 mm

Weight: 4 kg

Operating Conditions

Operating temperature: 0 to +40 °C

Operating humidity: 0–90%, non-condensing

Certifications: CE / RoHS

Package Contents

nJoy Keen 600 UPS

Attached Power Cord

User Manual

Warranty Card
