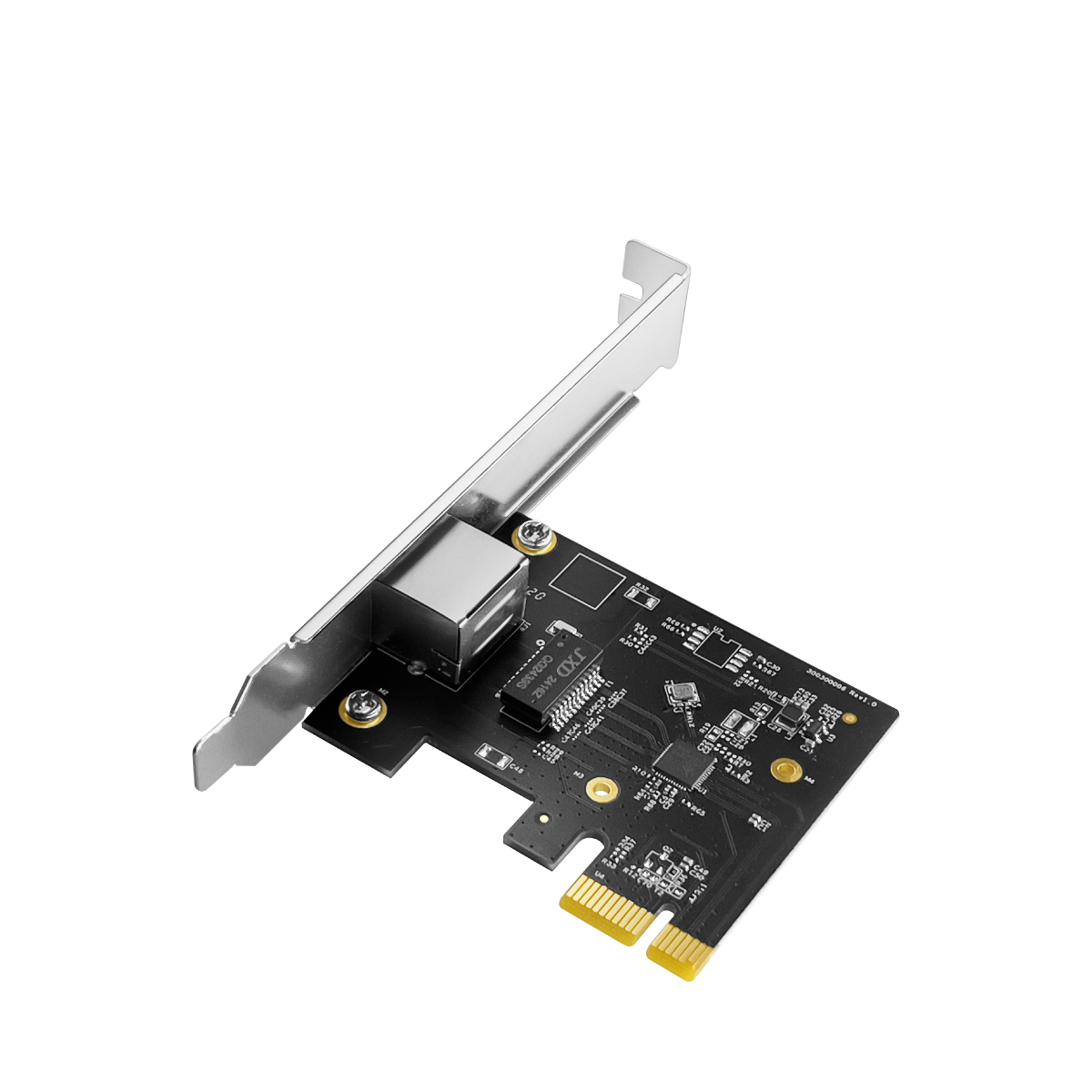

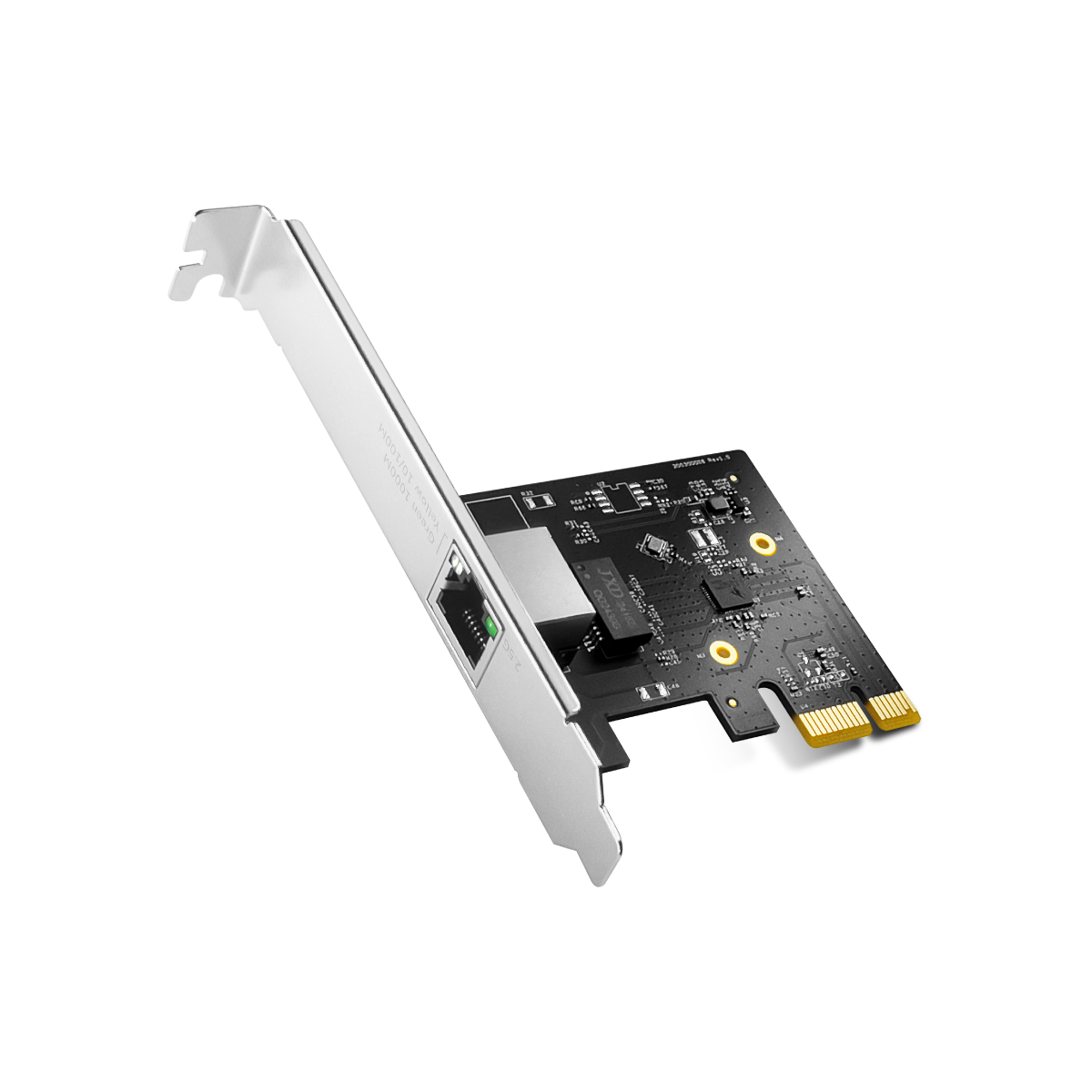

- Cudy PE25 — 2.5 Gbps PCI Express Ethernet Adapter
- Device type: PCI Express Ethernet Network Adapter
- Model: PE25
- Hardware version: PE25 2.0
- Chipset: Realtek RTL8125BG
- Host interface: PCI-E 2.1 x1
- Network interface: 1 × 2.5 Gigabit RJ45
- Ethernet
- Ethernet ports: 1 × RJ45
- Supported Ethernet rates:
- 10 Mbps
- 100 Mbps
- 1 Gbps
- 2.5 Gbps
- Maximum Ethernet speed: 2.5 Gbps
- Auto Negotiation: supported
- The adapter automatically negotiates the highest mutually supported speed with the connected switch, router or other Ethernet device.
- Network standards
- IEEE 802.3i — 10BASE-T
- IEEE 802.3u — 100BASE-TX
- IEEE 802.3ab — 1000BASE-T
- IEEE 802.3bz — 2.5GBASE-T
- IEEE 802.3x — Flow Control
- IEEE 802.3az — Energy Efficient Ethernet.
- Features
- Wake on LAN: supported
- Flow Control: supported
- EEE / Power Saving: supported
- Auto Negotiation: supported
- Wake on LAN allows a compatible computer or server to be awakened remotely through the network. IEEE 802.3az EEE reduces power consumption during periods of little or no network traffic.
- PCI Express interface
- Host interface: PCI-E 2.1 x1
- Hardware requirement: PCI-E 2.1 x1 or higher slot.
- Because it is an x1 PCI-E card, it can normally also be installed in compatible physical PCI-E x4, x8 or x16 slots.
- Indicators
- LED indicators:
- Speed
- Link
- ACT
- They indicate Ethernet link speed, connection status and network activity.
- Operating system compatibility
- Supported OS:
- Windows 7
- Windows 8 / 8.1
- Windows 10
- Windows 11
- Windows Server 2012–2022
- Linux.
- Physical specifications
- Main part dimensions without bracket: 64 × 56 × 15 mm
- Product weight: 37.2 g
- Standard bracket: supported
- Low-Profile bracket: included
- Operating temperature: 0 to +70 °C
- Storage temperature: −40 to +70 °C
- Operating humidity: 10–90%, non-condensing
- Storage humidity: 5–95%, non-condensing
- Certifications: FCC, CE.

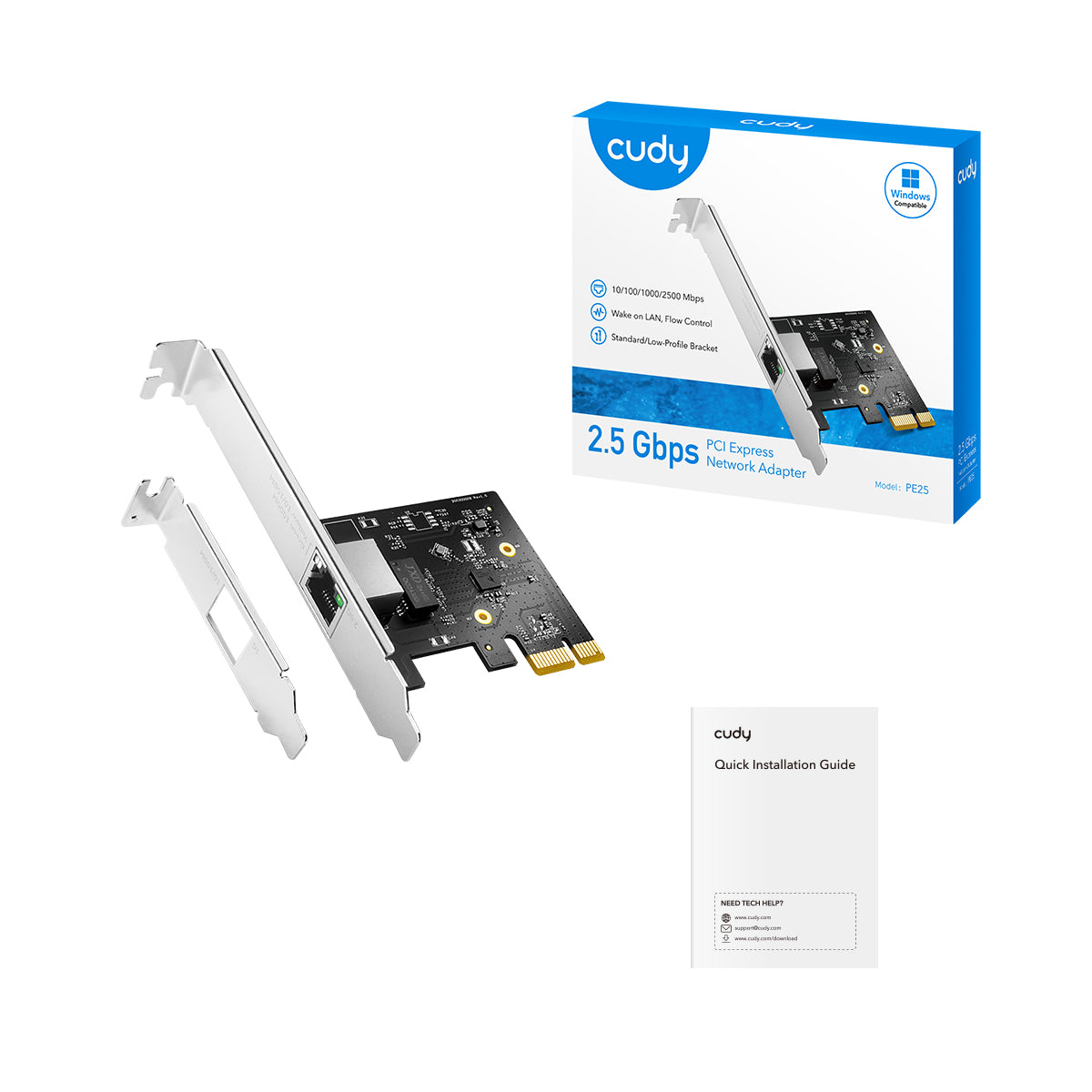

- Package contents
- Cudy PE25
- Low-Profile Bracket
- Installation Guide.
