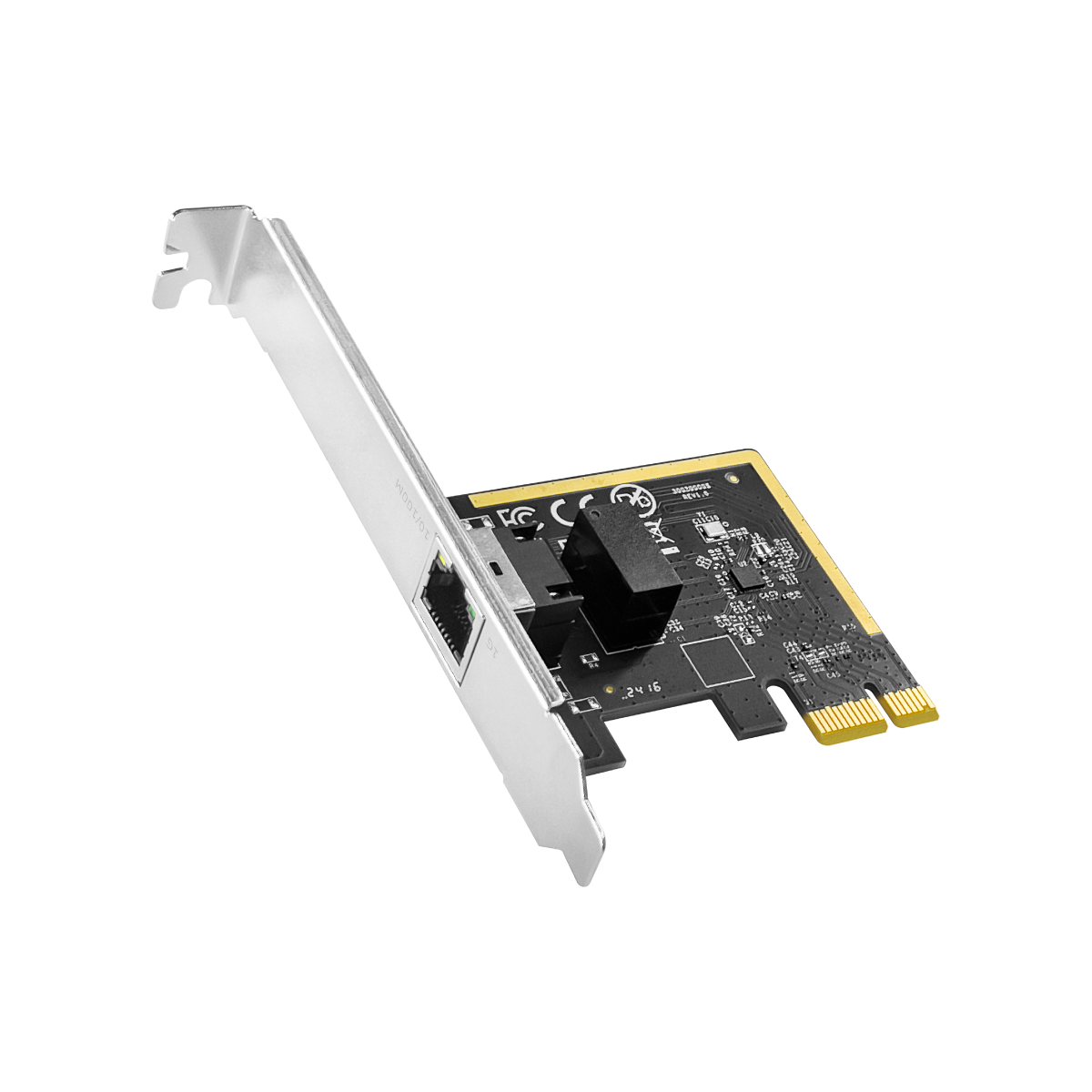

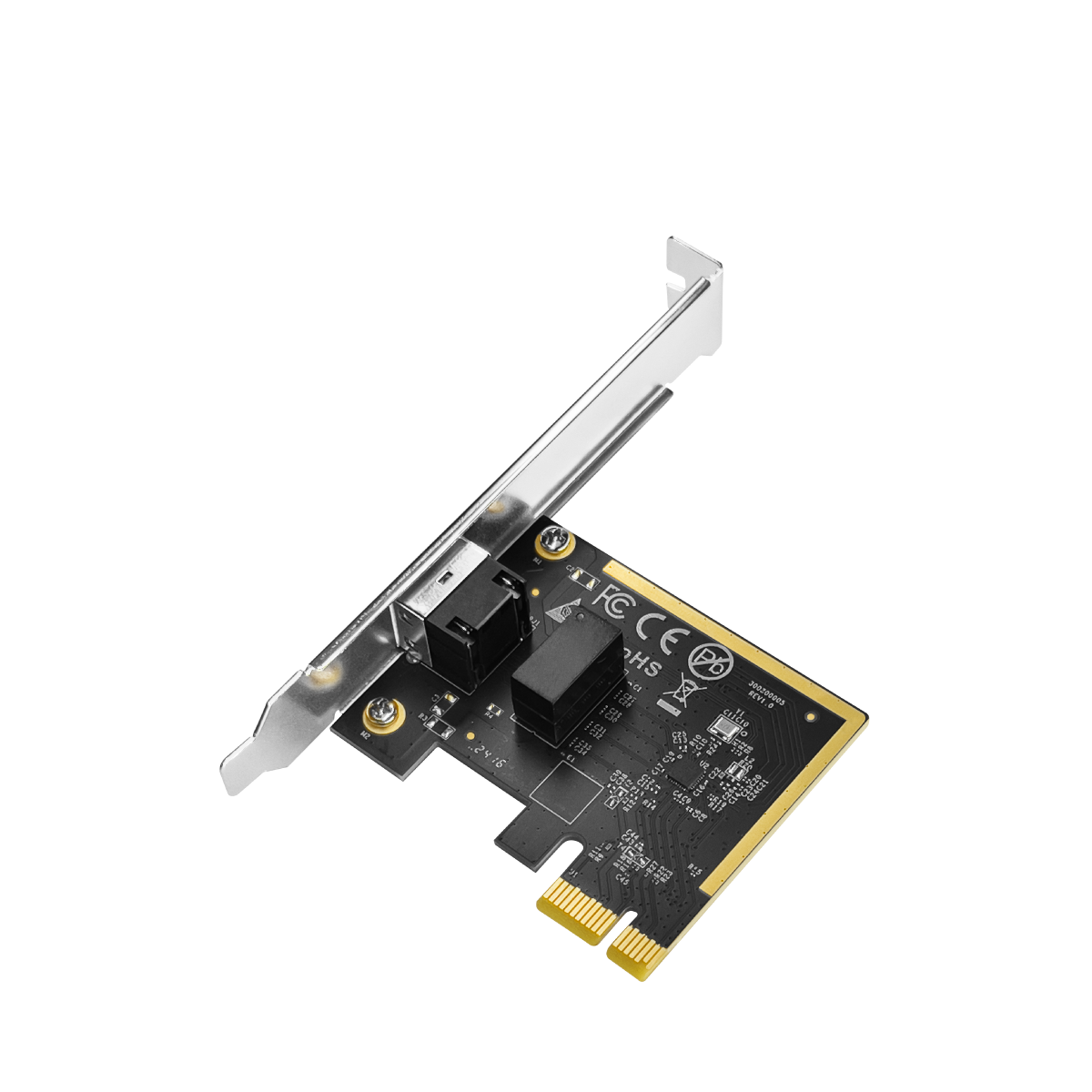

- Cudy PE10 — Gigabit PCI Express Ethernet Adapter
- Device type: PCI Express Ethernet Network Adapter
- Model: PE10
- Hardware version: PE10 2.0
- Network interface: 1 × Gigabit RJ45
- Host interface: PCI-E x1
- Ethernet
- Ethernet port: 1 × RJ45
- Maximum Ethernet speed: 1 Gbps
- Supported rates:
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Auto Negotiation: supported.
- Network standards
- IEEE 802.3i — 10BASE-T
- IEEE 802.3u — 100BASE-TX
- IEEE 802.3ab — 1000BASE-T
- IEEE 802.3x — Flow Control
- IEEE 802.3az — Energy Efficient Ethernet.
- Features
- Wake on LAN: supported
- Flow Control: supported
- EEE / Power Saving: supported
- Auto Negotiation: supported
- Wake on LAN allows a compatible PC to be powered on remotely through the network. IEEE 802.3az Energy Efficient Ethernet reduces power consumption when network traffic is low.
- PCI Express interface
- Host interface: PCI-E x1
- Hardware requirement: PCI-E x1 or higher motherboard slot.
- The card can therefore also be installed in compatible PCI-E x4, x8 or x16 slots.
- Indicators
- LED indicators: Speed / Link / ACT
- The LEDs indicate Ethernet connection status, activity and link speed.
- Operating system compatibility
- Supported systems:
- Windows XP
- Windows 7
- Windows 8 / 8.1
- Windows 10
- Windows 11
- Windows Server 2003 / 2008 / 2012 / 2022
- Linux.
- Physical specifications
- Main board dimensions without bracket: 64 × 56 × 15 mm
- Product weight: 33.8 g
- Standard bracket: supported
- Low-Profile bracket: included
- Operating temperature: 0 to +70 °C
- Storage temperature: −40 to +70 °C
- Operating humidity: 10–90%, non-condensing
- Storage humidity: 5–95%, non-condensing
- Certifications: FCC, CE.

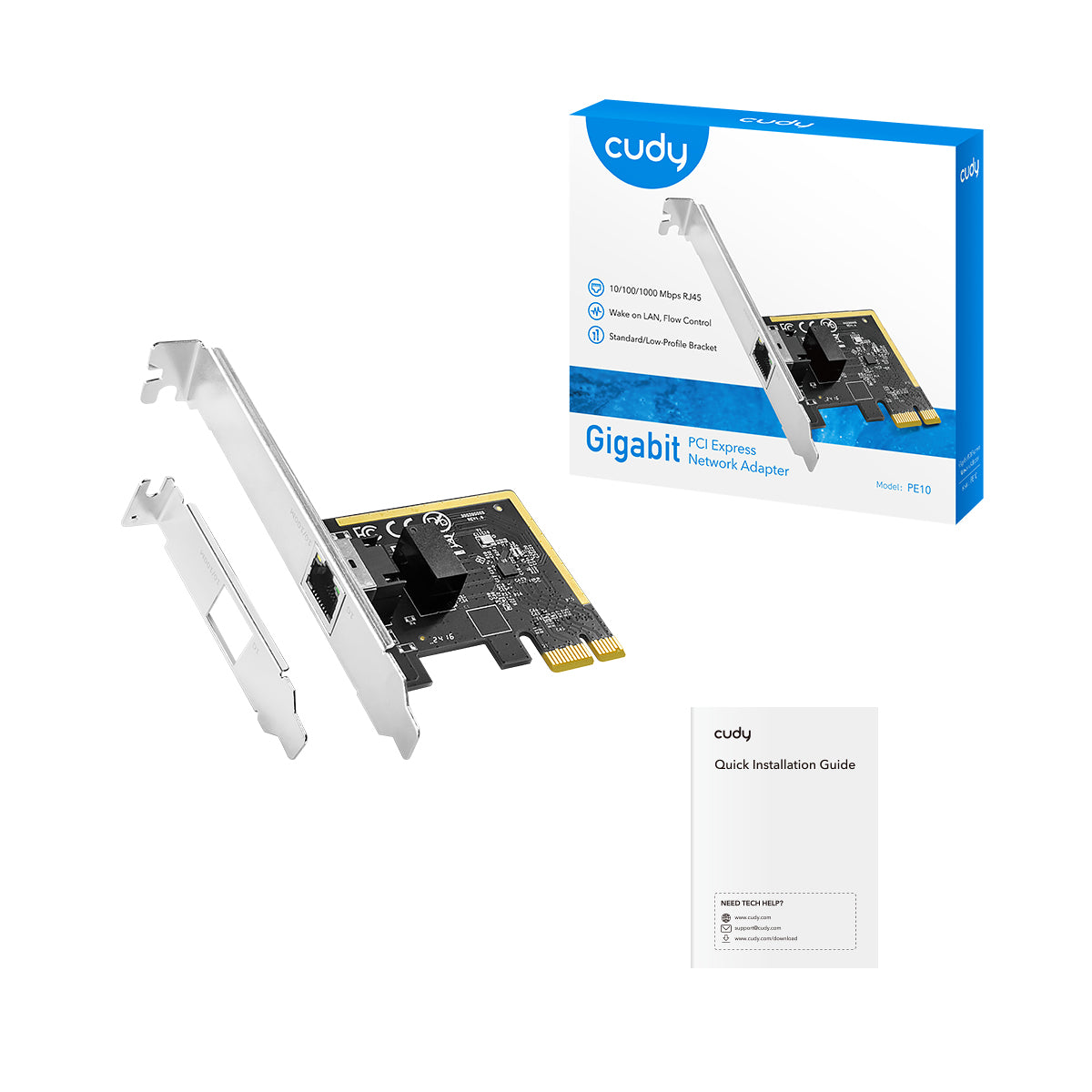

- Package contents
- Cudy PE10
- Low-Profile Bracket
- Installation Guide.
