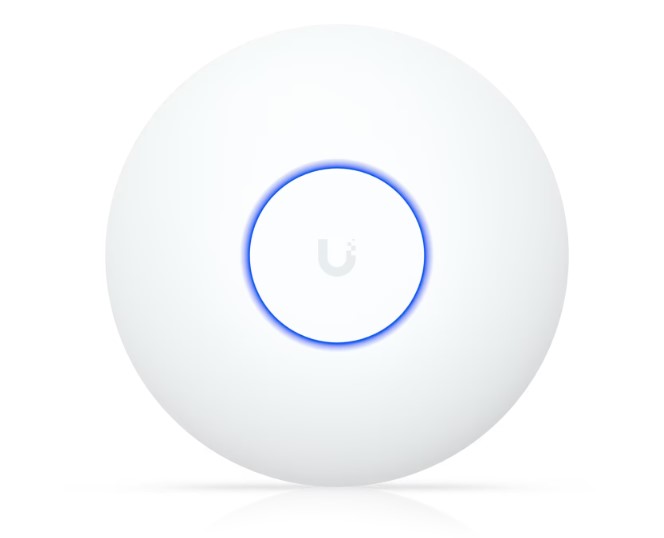

UBIQUITI UniFi WiFi 7 Access Point U7 Lite (U7-Lite)

Specification:

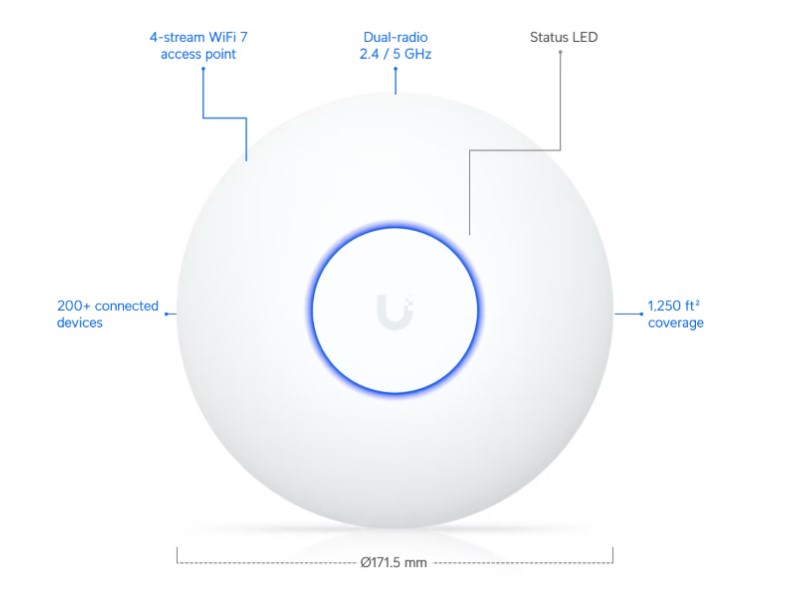

Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3")

WiFi Standard: WIFi 7

Spatial Streams: 4

Coverage Area: 115 m² (1,250 ft²)

Max. Client Count: 200+

Uplink: 2.5 GbE

Mounting: Ceiling, Wall (Lite Mount Included)

Power Method: PoE

Performance

MIMO:

   5 GHz - 2 x 2 (DL/UL MU-MIMO)

   2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate:

   5 GHz - 4.3 Gbps (BW240)

   2.4 GHz - 688 Mbps (BW40)

Antenna Gain:

   5 GHz - 5 dBi

   2.4 GHz - 4 dBi

Max. TX Power:

   5 GHz - 24 dBm

   2.4 GHz - 23 dBm

Max. BSSIDs: 8 per Radio

Supported Data Rates:

   802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

   802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

   802.11ac (WiFi 5) - 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

   802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced Radio Management: Yes

Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal:

   Custom Branding Landing Page: Yes

   Voucher Authentication: Yes

   Payment-Based Authentication: Yes

   External Portal Server Support: Yes

   Password Authentication: Yes

   Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 13W

Supported Voltage Range: 42.5—57V DC

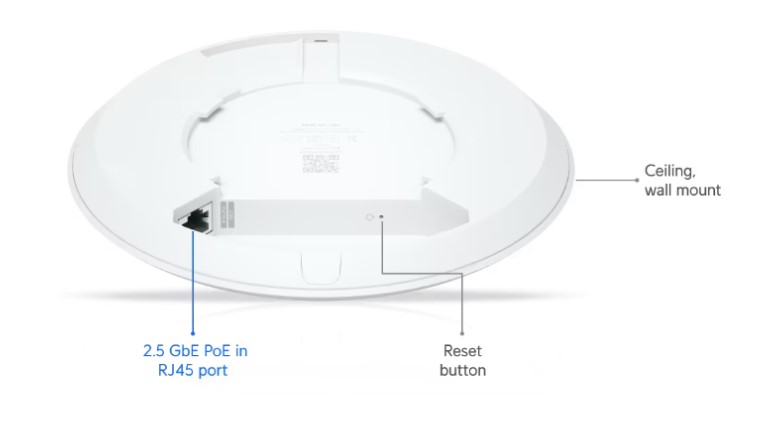

Networking Interface: (1) 2.5 GbE RJ45 port

Weight: 313 g (11 oz)

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate

Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs:

   System: White/Blue

Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications: CE, FCC, IC

Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements:

   UniFi Network: Version 9.0.114 and later

   UniFi OS: iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
