In stock

Cudy WE3000 Wi-Fi 6 PCI Express Adapter / AX3000

SKU: 009072

Wi-Fi Adapters

Features

Name	Description
Standard	Wi-Fi 6
Wi-Fi class	AX3000
Frequency range	Dual-Band: 2.4 GHz / 5 GHz
Data Rate	574 + 2402 Mbps
Host Interface	PCI-E x1
Chipset	Intel AX200
Antenna	2 × Detachable
Bluetooth	Bluetooth 5.2
Wireless security	WPA / WPA2 / WPA3
Supported OS	Windows 10 / 11 64-bit

13 940 ֏

or 737 ֏ / month

← Back to «Wi-Fi Adapters»

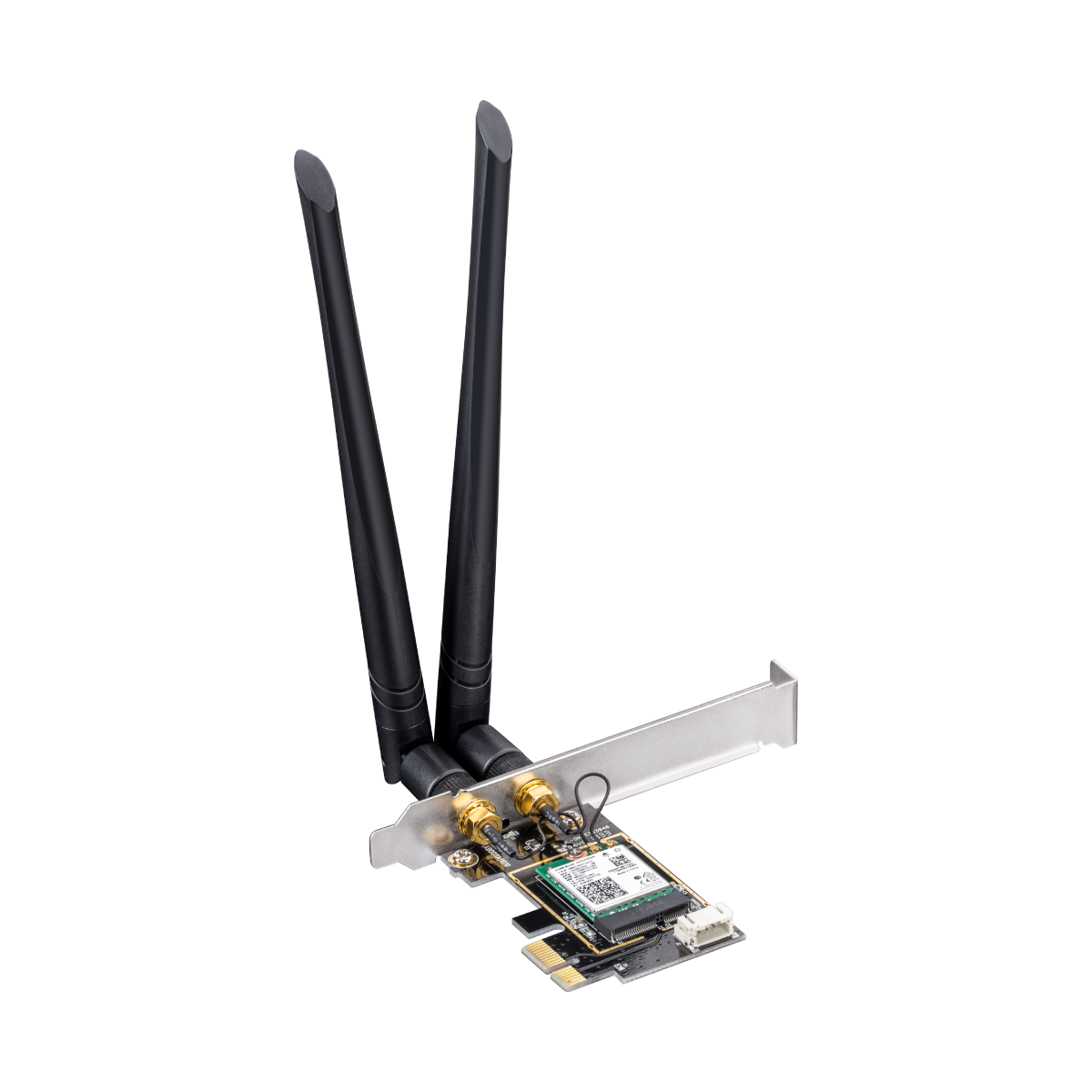

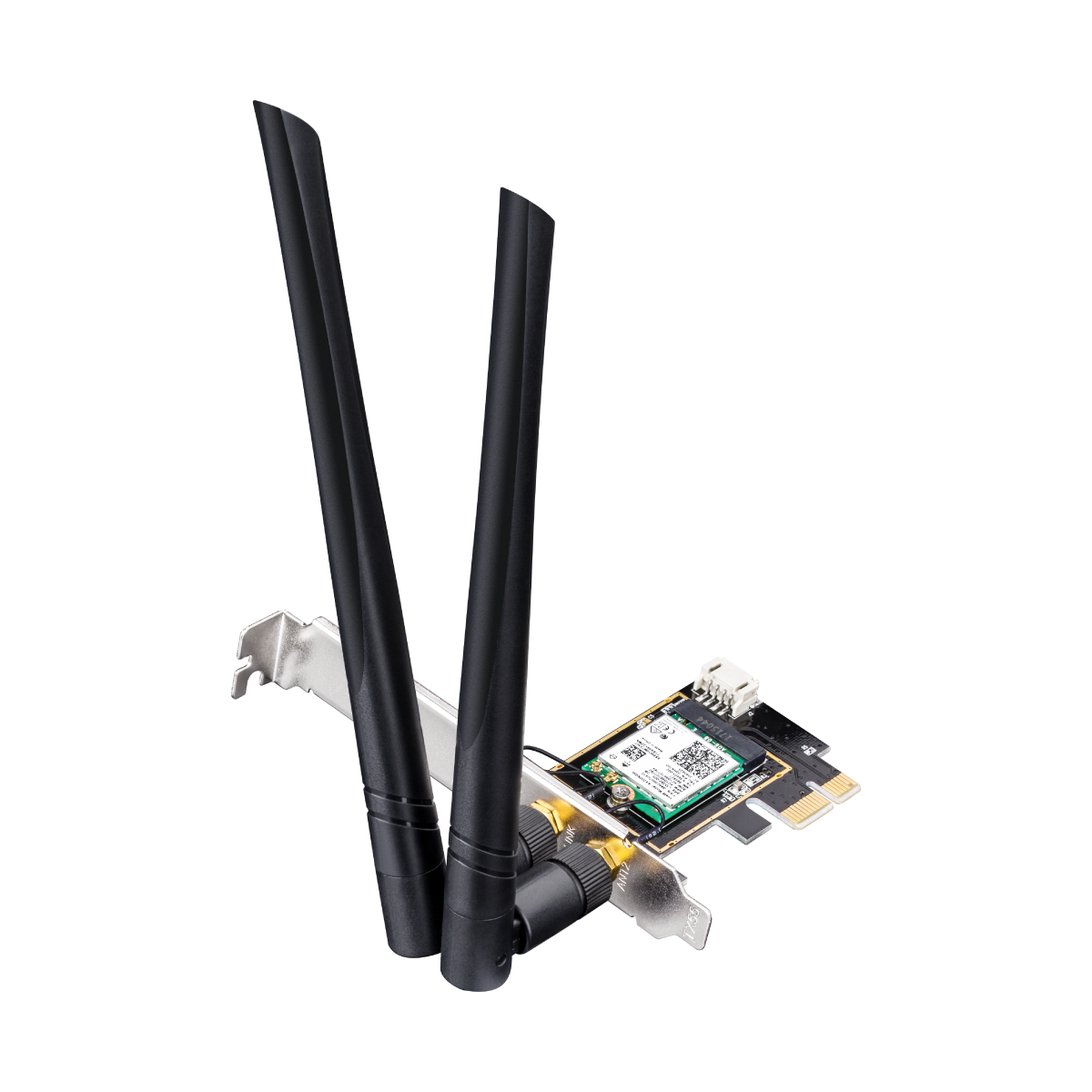

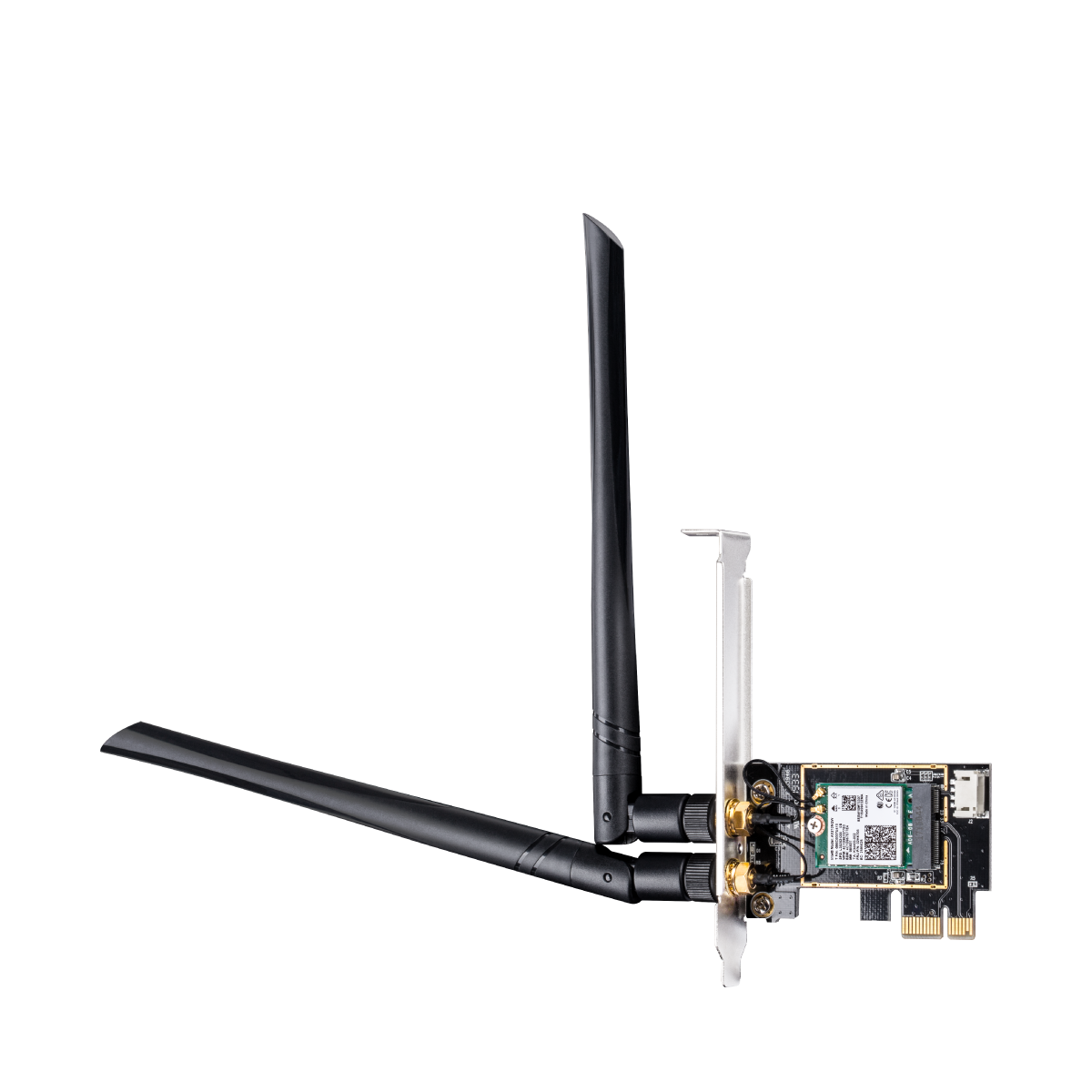

Cudy WE3000 — AX3000 Wi-Fi 6 Bluetooth PCI Express Adapter
Device type: Internal PCI-E Wi-Fi and Bluetooth Adapter
Model: WE3000
Hardware version: WE3000 1.0
Wireless module: Intel AX200
Wi-Fi standard: Wi-Fi 6
Wi-Fi class: AX3000
Frequency bands: Dual-Band — 2.4 GHz and 5 GHz
Wi-Fi
2.4 GHz Wi-Fi speed: up to 574 Mbps
5 GHz Wi-Fi speed: up to 2402 Mbps
Combined theoretical Wi-Fi rate: up to 2976 Mbps
2.4 GHz streams: 2 Spatial Streams
5 GHz streams: 2 Spatial Streams
Wi-Fi configuration: 2×2
Maximum modulation: 1024-QAM
Channel width: Auto / 20 / 40 / 80 / 160 MHz
OFDMA: supported
MU-MIMO: supported
BSS Color: supported.
Bluetooth
Bluetooth standard: Bluetooth 5.2
Bluetooth requires connection of the supplied internal cable to a free 9-pin USB header on the motherboard. The PCI-E connection alone provides Wi-Fi functionality, but the internal USB connection is required for Bluetooth.
Interface
Host interface: PCI-E x1
Compatible motherboard slots:
PCI-E x1
PCI-E x4
PCI-E x8
PCI-E x16
Bluetooth interface: internal USB 9-Pin
The adapter can therefore be installed in a larger PCI-E slot as well; it does not strictly require a physical x1 slot.

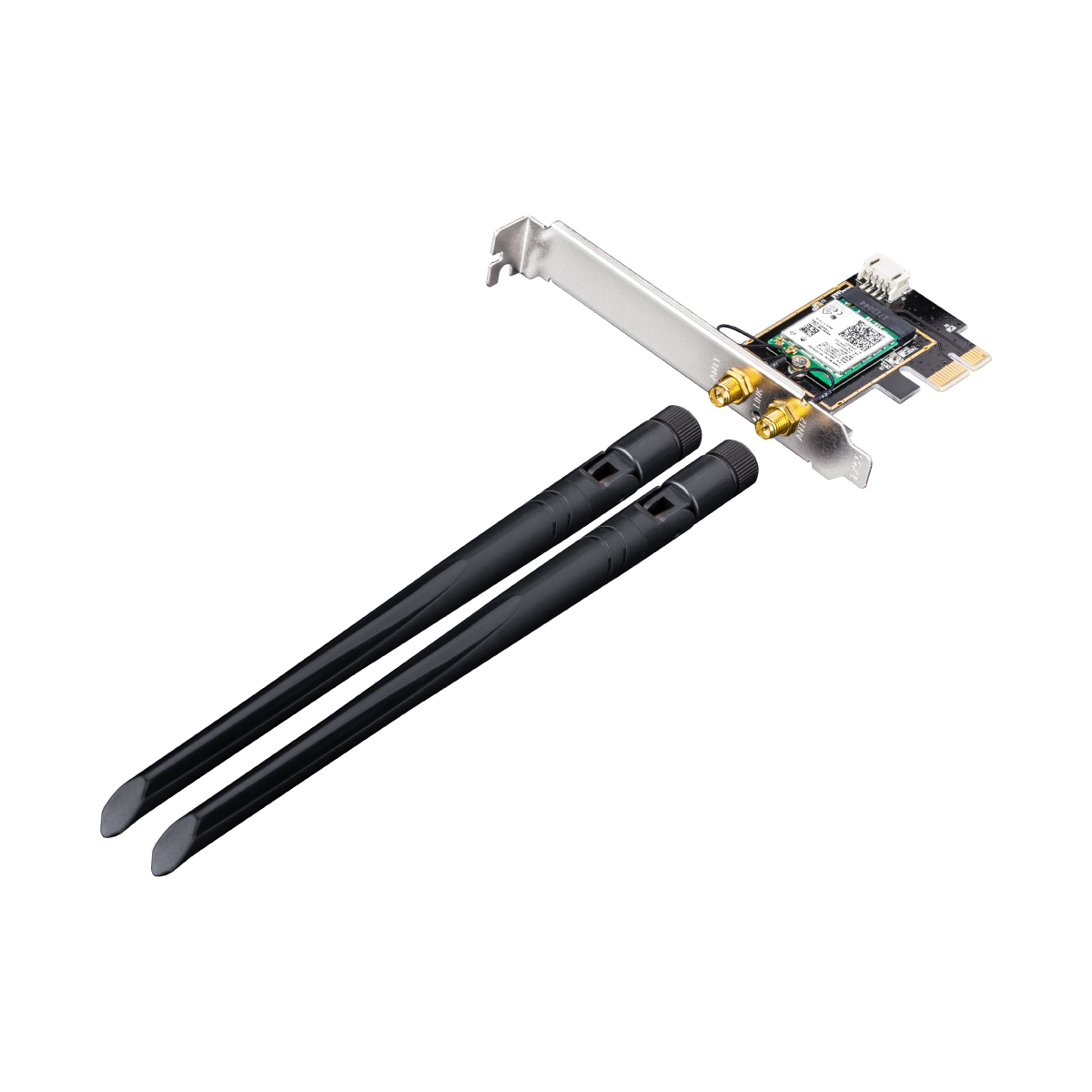

Antennas
Wi-Fi antennas: 2 × detachable
Antenna connector: RP-SMA Female
The antennas can be removed and replaced with compatible RP-SMA antennas.
Wireless security
WPA
WPA2
WPA3.
Operating system
Supported OS: Windows 10 / Windows 11 64-bit
Driver installation: manual driver installation; drivers are available from Cudy Download Center.
Physical specifications
Main board dimensions without bracket: 65 × 45.5 × 16 mm
Each antenna: Ø15 × 221.5 mm
Product weight: 71 g
Operating temperature: 0 to +70 °C
Storage temperature: −40 to +70 °C
Operating humidity: 10–90%, non-condensing
Storage humidity: 5–95%, non-condensing
Certifications: FCC, CE.

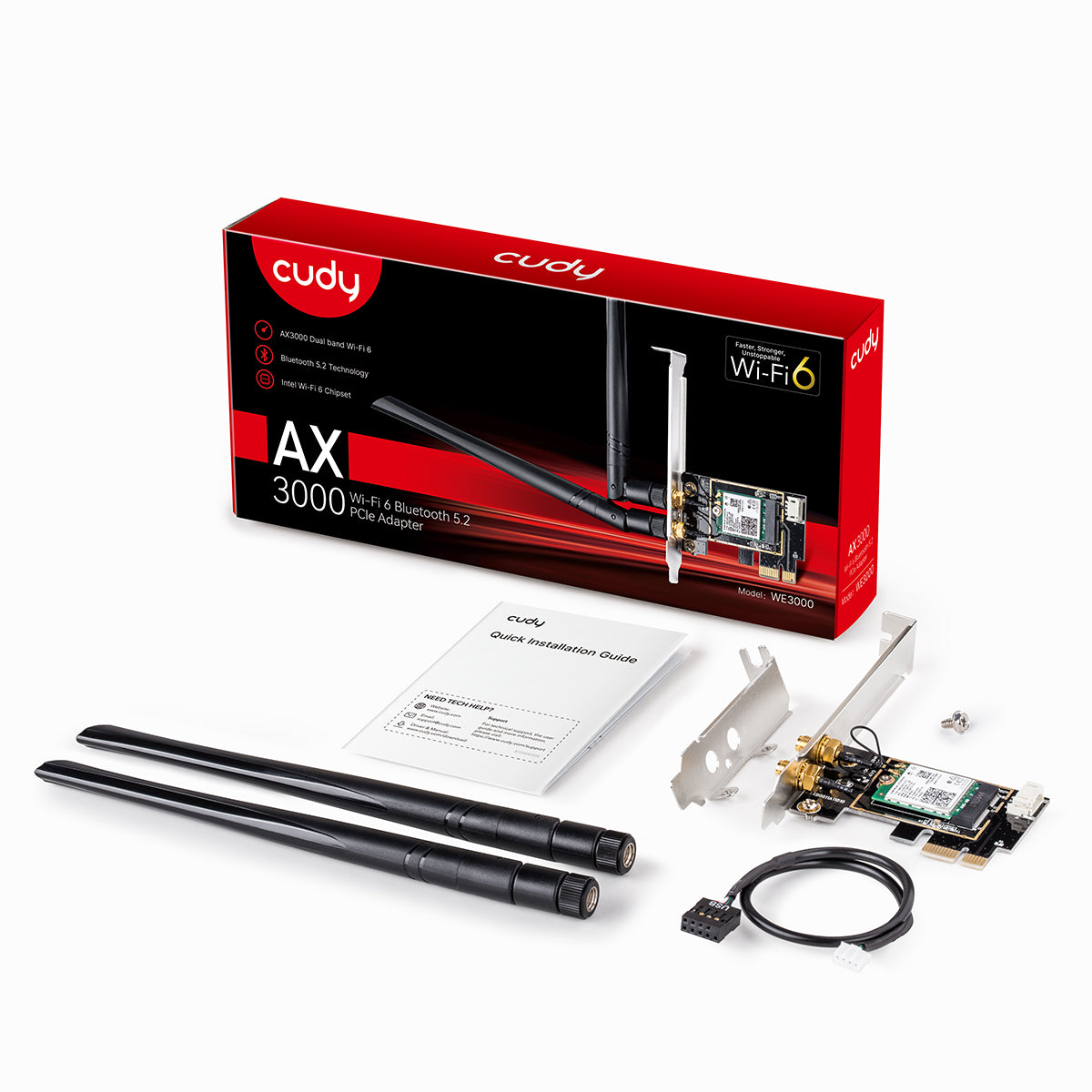

Package contents
Cudy WE3000
2 × detachable antennas
Bluetooth-to-9-Pin USB cable

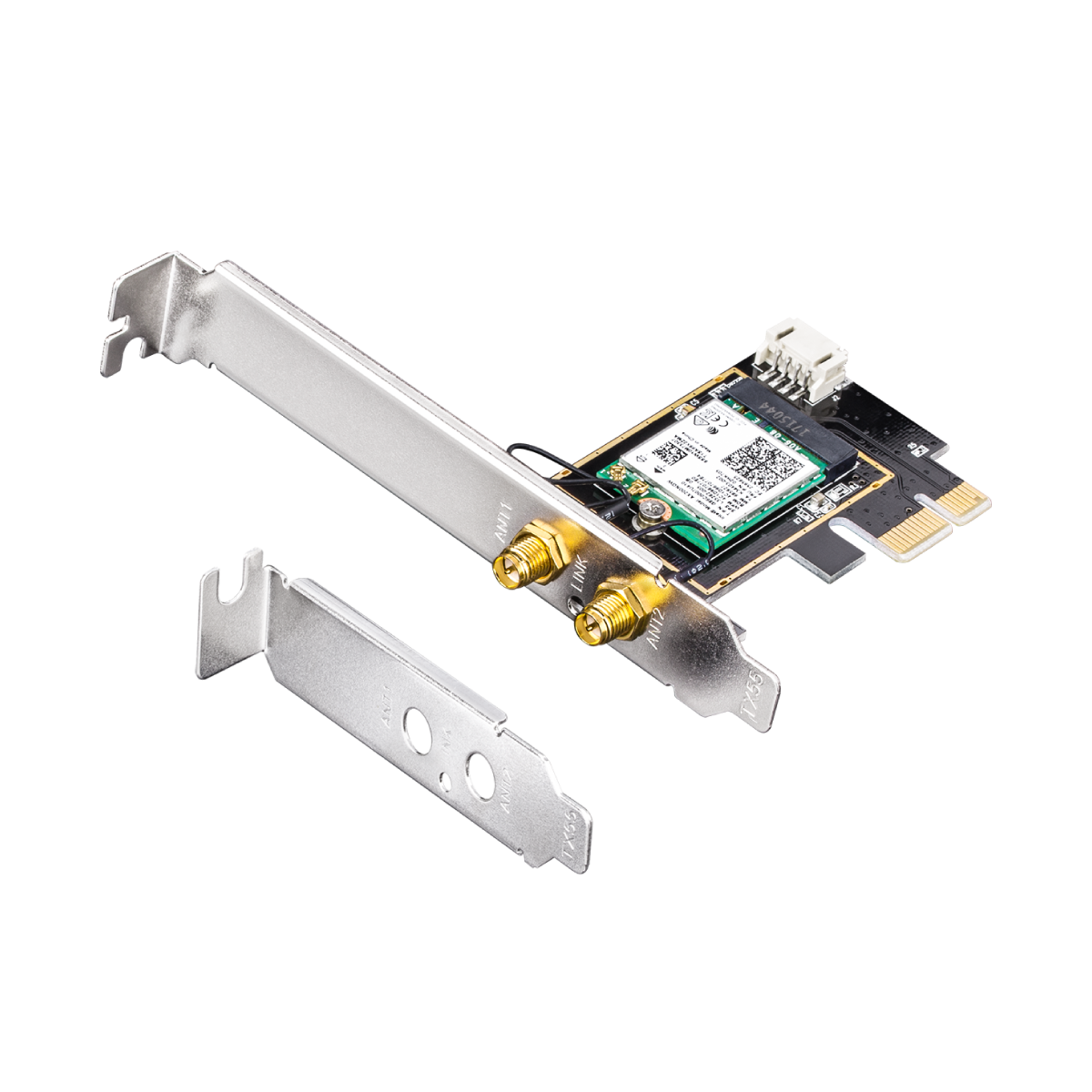

Standard bracket
Low-Profile bracket
Installation Guide.
