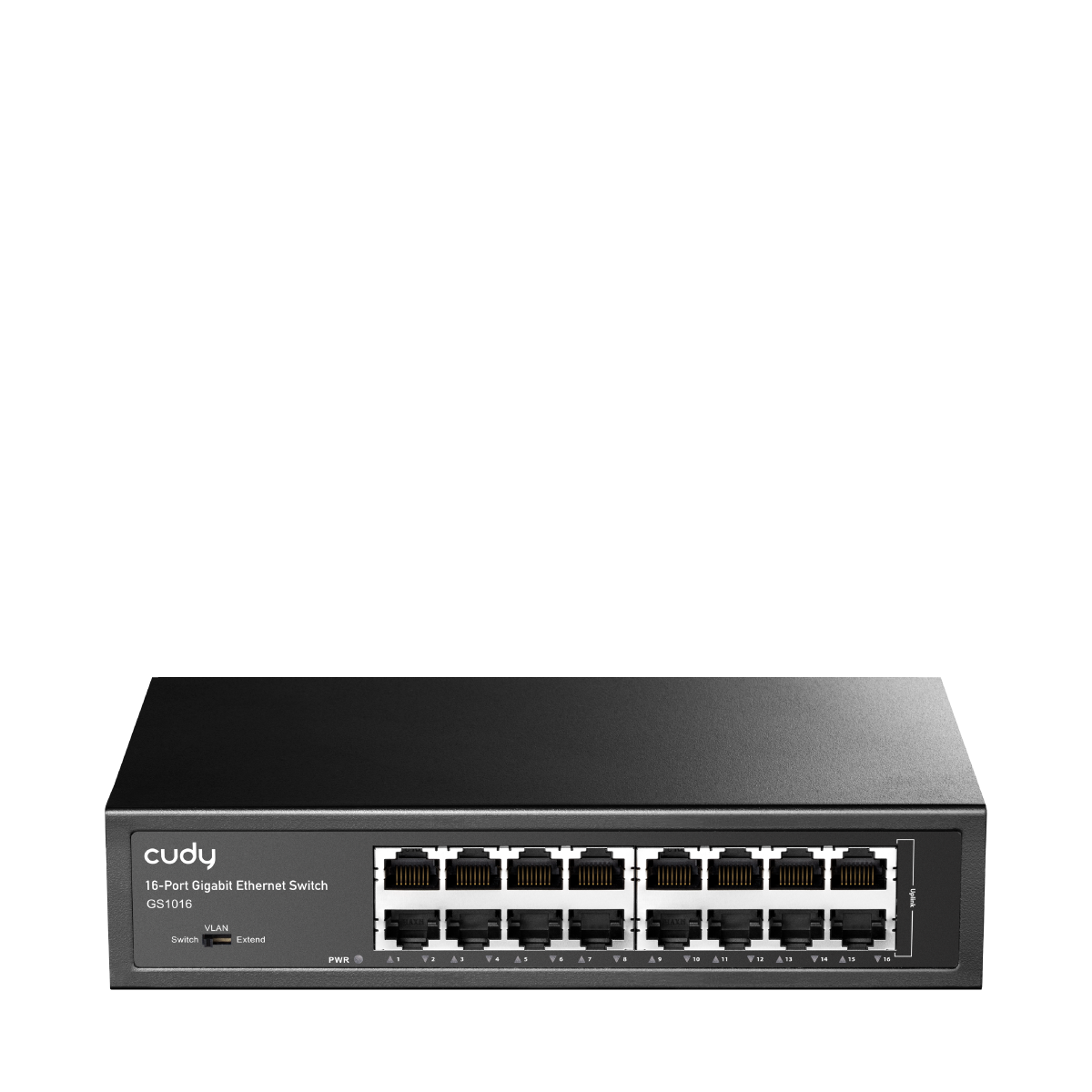

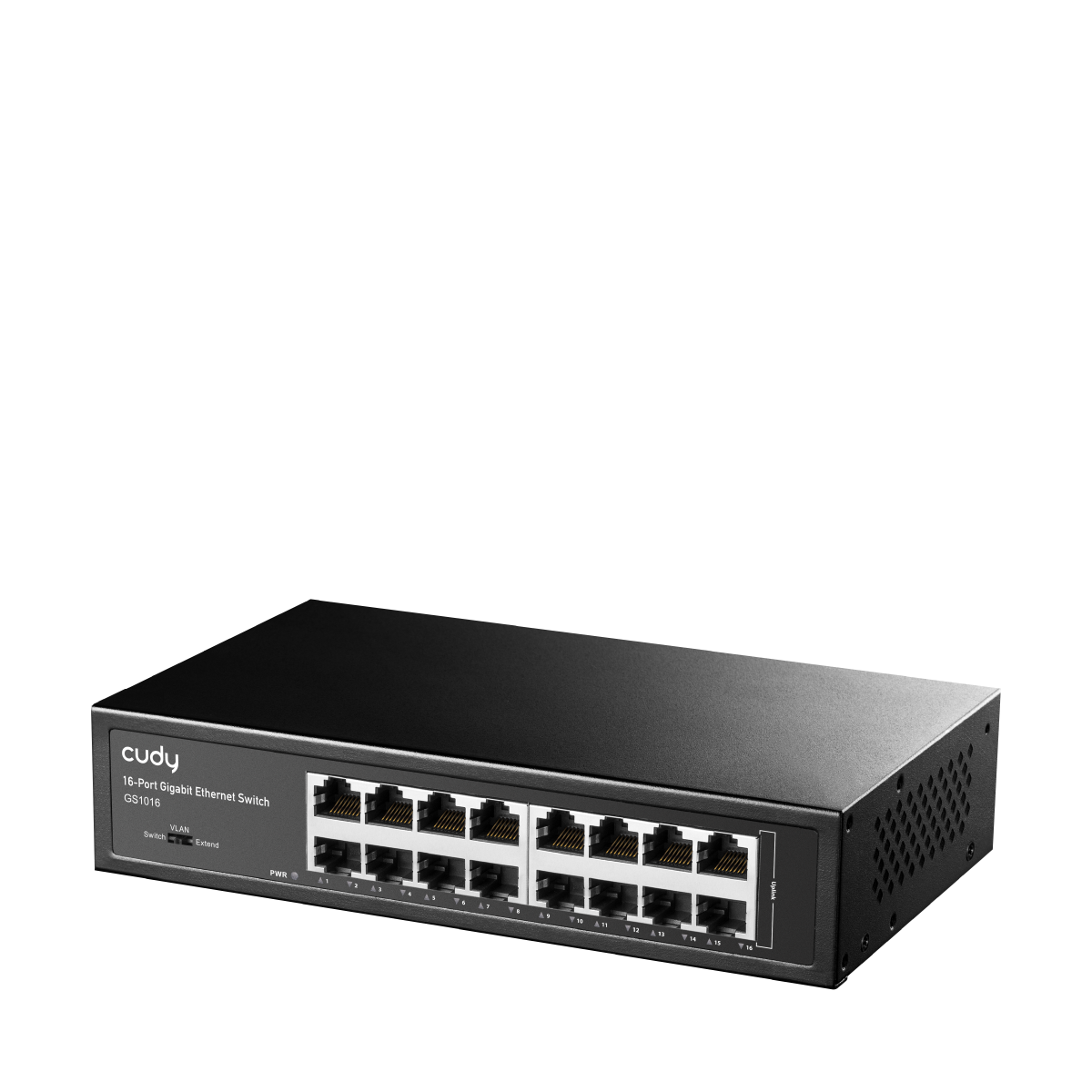

CUDY GS1016 16-Port Gigabit Switch

Model Version

GS1016 4.0

Interfaces - 10/100 Mbps RJ45 Ports

16

Interfaces - Shielded RJ45 Port

True

Interfaces - Extend Mode Ports

#1~#14

Interfaces - VLAN Mode Ports

#1~#14

Interfaces - LED

• Power
• Speed/Link/ACT of Each Ethernet Port

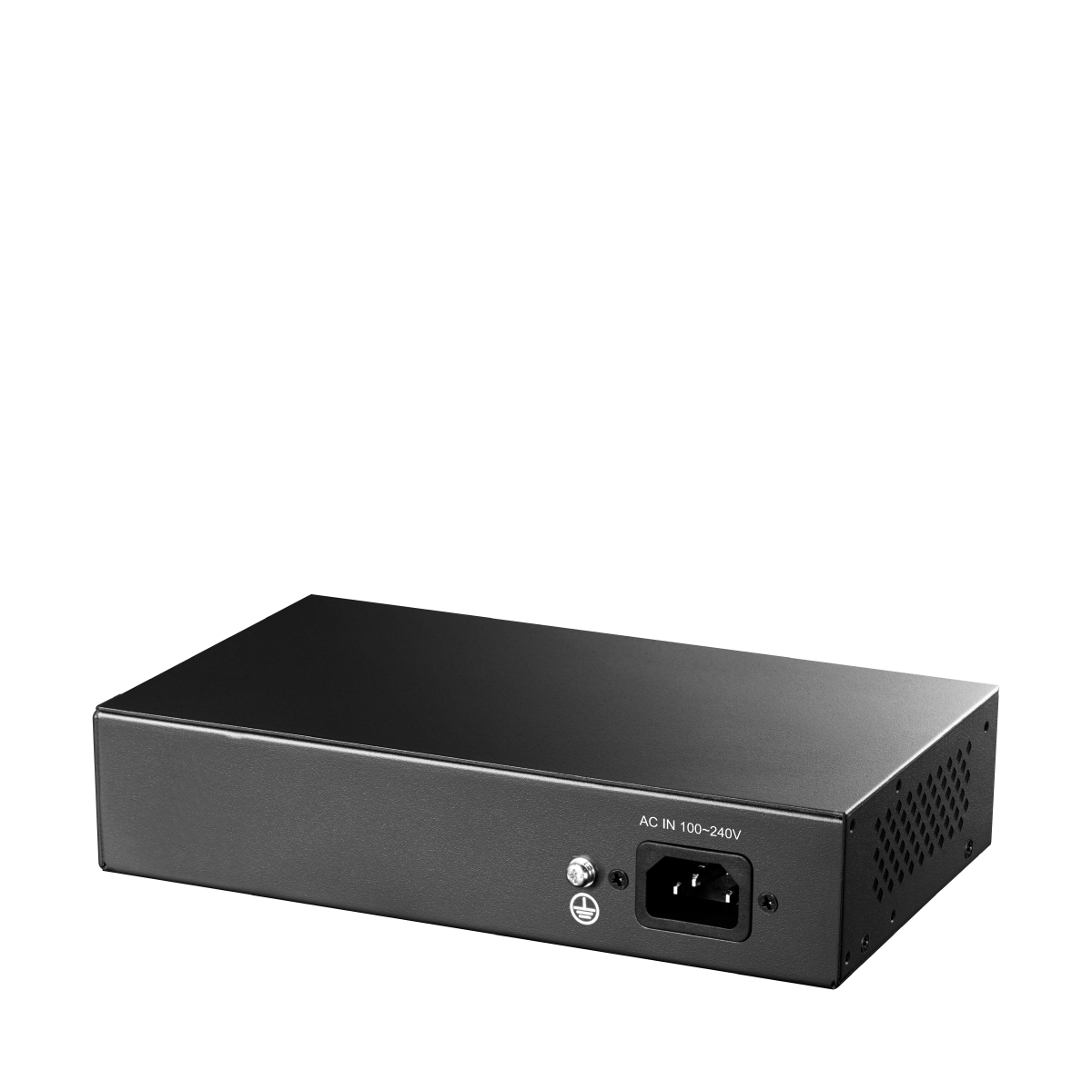

Interfaces - Power Input

AC Inlet

Interfaces - Physical Buttons

VLAN/Default/Extend DIP Switch

Performance - Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 250 meters at 10 Mbps

Performance - Copper Speed and Distance Note

250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.

Performance - MAC Address Table

8192

Performance - Max Switching Capacity

32 Gbps

Performance - Max Forwarding Rate

23.808 Mpps

Performance - Jumbo Frame

15 KB

Performance - Packet Buffer

4 Mbit

Power - Basic Power Saving

True

Power - Power Methods

AC

Power - AC

90-260V~ 50/60Hz

Power - Max Power Consumption

7.8 W

Power - Idle Power Consumption

4.5 W

Switching - 802.3 Protocols

• 802.3x Flow Control
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T

Switching - 802.1 Protocols

802.1p: LAN Layer 2 QoS/CoS

L2 Features

• IGMP Snooping
• Loop Prevention
• Loop Detection
• DSCP QoS
• 802.1p QoS

Reliability - Grounding Methods

• Three-Prong Plug
• Grounding Point

Reliability - EMS

IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV

IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV

Reliability - Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Mechanical - Dimension

200×118×44 mm

7.87×4.65×1.73 inches

Mechanical - Product Weight

633.7 g (22.35 oz.)

Mechanical - Casing Material

Metal

Mechanical - Installation

• Desktop
• Rackmount via Brackets
